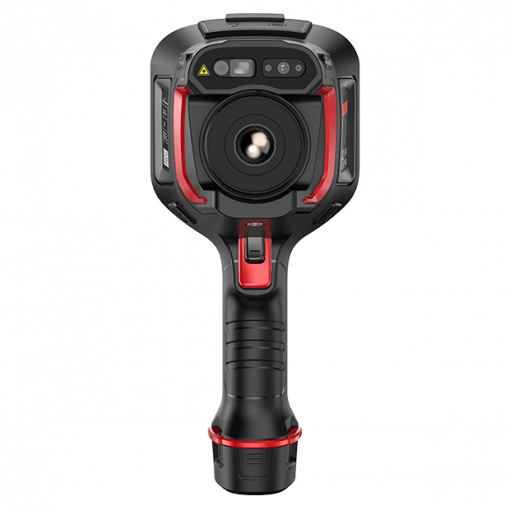

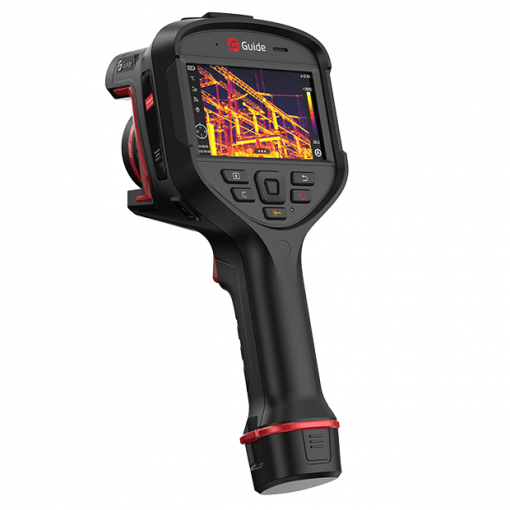

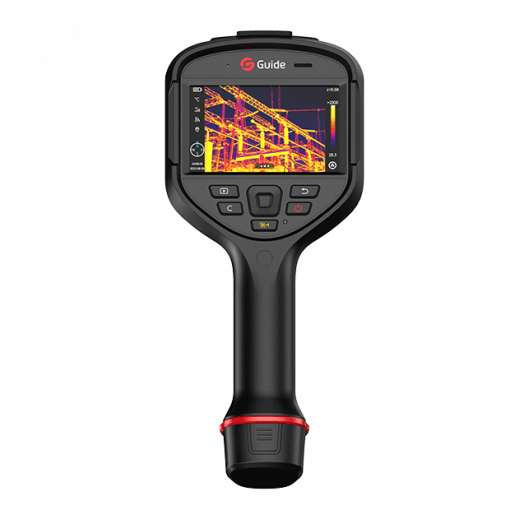

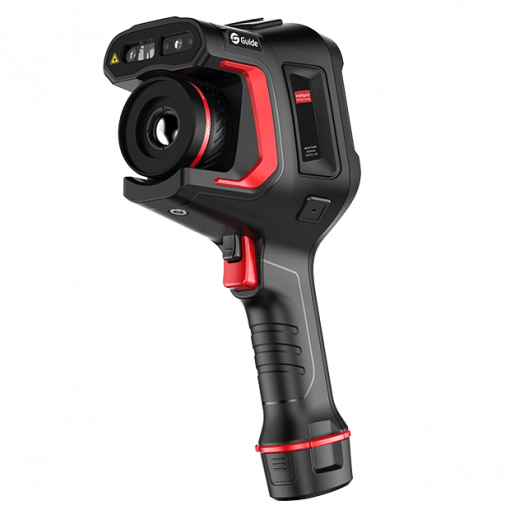

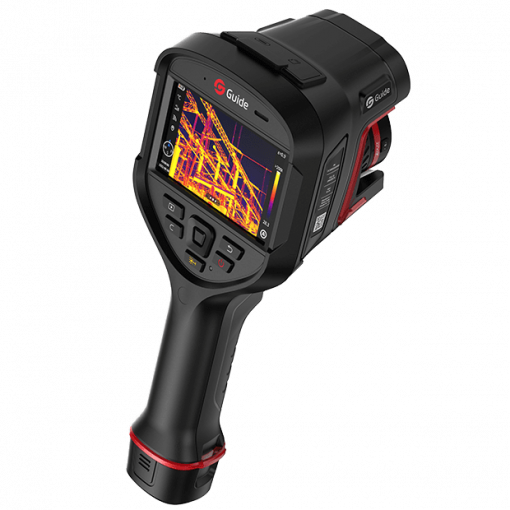

GUIDE IR H2 Intelligent Thermal Camera IR Resolution: 256x192; Visible Light: 5MP; Frame Rate: 30Hz; Guide Sensmart

Screen color modes: IR, visual picture, Pip, MIF

Field of view (°): 25° × 19°

Sizes: 292 × 125 × 125 mm

Measurement properties:

Temperature ranges: -40°C to 150°C, 0°C to

650°C（Automatic switching）

Measurement accuracy: ±2°C or ±2%

Temperature measuring

parameters: Emissivity, reflected

temperature, target distance, humidity,

atmospheric transmittance, optical

transmittance, dew point

Working / storage temperature: -20°C to 50°C / -40°C to 60°C

Lens: 10.5 mm, fix focus

Sensor: 256*192@12μm, VOx NETD ≤45 mK

Color: black

In the box:

camera, wrist strap, 64GB SD card, battery

charger, USB cable, adapter

Weight (g): ≤1.15KG (with battery)

Shock resistance: fall resistance 2 m

Operating time:

up to 5 hours

Charging time: 90% of full charge in 2.5 hours

Water resistance: IP54
