HRH-5/UNI: Uzraudzības releji;Module: level monitoring relay; conductive fluid level; DIN

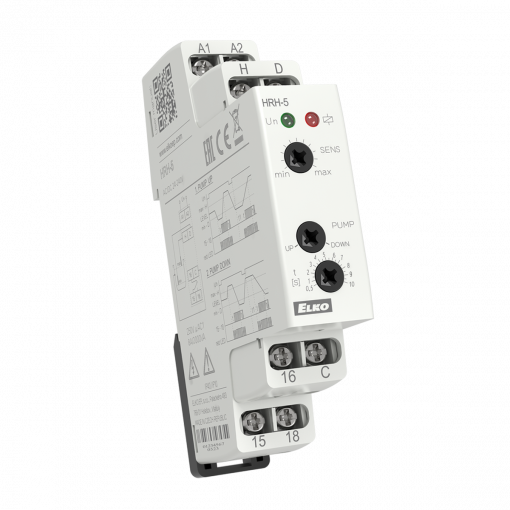

HRH-5/UNI | Level switch for monitoring 1 or 2 levels

• Relay is designed for monitoring levels in wells, basins, reservoirs, tanks,...
• In one device you can choose the following confi gurations:
  - One-level switch of conductive liquids (by connecting H and D).
  - Two-level switch of conductive liquids.
• One-state device monitors one level, two-state device monitors two levels (switches on one level and switches off on another level).
• Adjustable time delay on the output (0.5 - 10s).
• Sensitivity adjustable by a potentiometer (5 - 100).
• Measuring frequency 10 Hz prevents polarization of liquid and raising oxidation of measuring probes.
• Galvanically separated supply voltage UNI 24 to 240 V AC/DC.

Technical parameters


• Output: 1x CO, 8 A
• Sensitivity: 5-100 kohm
• Number of functions: 2
• Housing: 1-MODULE
• Supply voltage (frequency): 24-240 V AC/ DC (AC 50/60 Hz)
• Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
